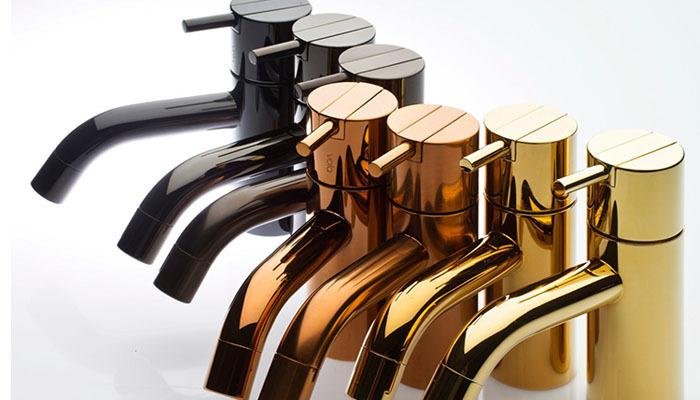

Engineers specifying surface treatments have more options than ever, and the differences between them are not always obvious from a line item on a quote. Physical vapor deposition, electroplating, and anodizing all modify a part’s surface but they do it through fundamentally different mechanisms, produce different results, and suit different applications. Understanding those differences helps your team specify the right process the first time.
How Each Process Works
Physical vapor deposition is a vacuum-based process. A solid target material, titanium, chromium, zirconium, aluminum, or a combination, is vaporized inside a vacuum chamber using an electric arc or sputtering. The vaporized atoms react with a process gas (typically nitrogen or carbon) and deposit as a thin, hard film on the part surface. The result is a dense, well-adhered coating typically 1–7 µm thick with hardness values ranging from 1,600 to 4,500 HV depending on the coating type.
Electroplating is an electrochemical process. The part is submerged in a liquid solution containing dissolved metal ions, and an electric current drives those ions onto the part surface. Common electroplated finishes include hard chrome, nickel, zinc, and cadmium. Plating thicknesses are typically much greater than PVD, often 5–250 µm or more, and the resulting finish is softer, usually in the 800–1,000 HV range for hard chrome.
Anodizing is an electrochemical conversion process specific to aluminum and titanium. Rather than depositing a new material, anodizing converts the surface of the base metal into a hard oxide layer. Type III hard anodizing on aluminum produces a surface hardness around 400–600 HV with thicknesses typically between 25–75 µm.
Hardness and Wear Resistance
This is where physical vapor deposition coating separates itself most clearly. PVD coatings like AlTiN (3,400–3,600 HV), AlTiSiN (4,500 HV), and nACO (4,500 HV) are several times harder than hard chrome plating and an order of magnitude harder than anodized surfaces. For applications where abrasive wear, sliding contact, or high-temperature erosion drives part failure, PVD provides wear resistance that plating and anodizing cannot approach.
Hard chrome plating has served the automotive and industrial sectors for decades, but its wear resistance is limited by its hardness ceiling. Anodizing provides corrosion protection and moderate wear resistance on aluminum, but it is not applicable to steels, titanium medical components, or carbide tooling.
Thickness and Dimensional Impact
PVD coatings are applied at 1–7 µm per side. For a part with a 3 µm coating, the total dimensional change across a diameter is 6 µm. This makes PVD compatible with finished, tolerance-critical parts that cannot accept the dimensional buildup of plating or anodizing.
Electroplating adds substantially more material. A 50 µm chrome plate adds 100 µm across a diameter, which often requires post-plating grinding to bring the part back into tolerance. Anodizing grows into and out from the surface, with roughly half the layer above the original dimension, still a larger dimensional change than PVD.
For precision machined parts, medical instruments, and firearm components where tolerances are measured in single-digit micrometers, PVD’s minimal thickness is a functional advantage.
Adhesion and Coating Integrity
PVD coatings bond to the substrate at an atomic level through the vacuum deposition process. When the substrate is properly cleaned and the coating-substrate pairing is appropriate, PVD films resist chipping, flaking, and delamination under operating loads.
Electroplated layers are mechanically bonded and can peel or blister under thermal cycling, mechanical stress, or when the plating bath chemistry is inconsistent. Hydrogen embrittlement is an additional concern with chrome plating, particularly on high-strength steels used in aerospace and firearms applications.
Anodized layers are integral to the base metal and do not peel, but they are brittle and can crack under impact or flexion.
Environmental and Regulatory Considerations
Hexavalent chromium, the form of chrome used in many hard chrome plating operations, is a known carcinogen and faces increasing regulatory restriction under REACH (EU) and EPA guidelines. Many manufacturers are actively seeking alternatives to hex-chrome plating for this reason.
PVD is a dry vacuum process with no liquid chemical baths, no heavy metal discharge, and no hazardous byproducts. Anodizing uses acid baths that require treatment and disposal but avoids the hex-chrome concern.
For operations evaluating long-term regulatory risk alongside performance, physical vapor deposition coating provides a cleaner process without sacrificing surface properties.
